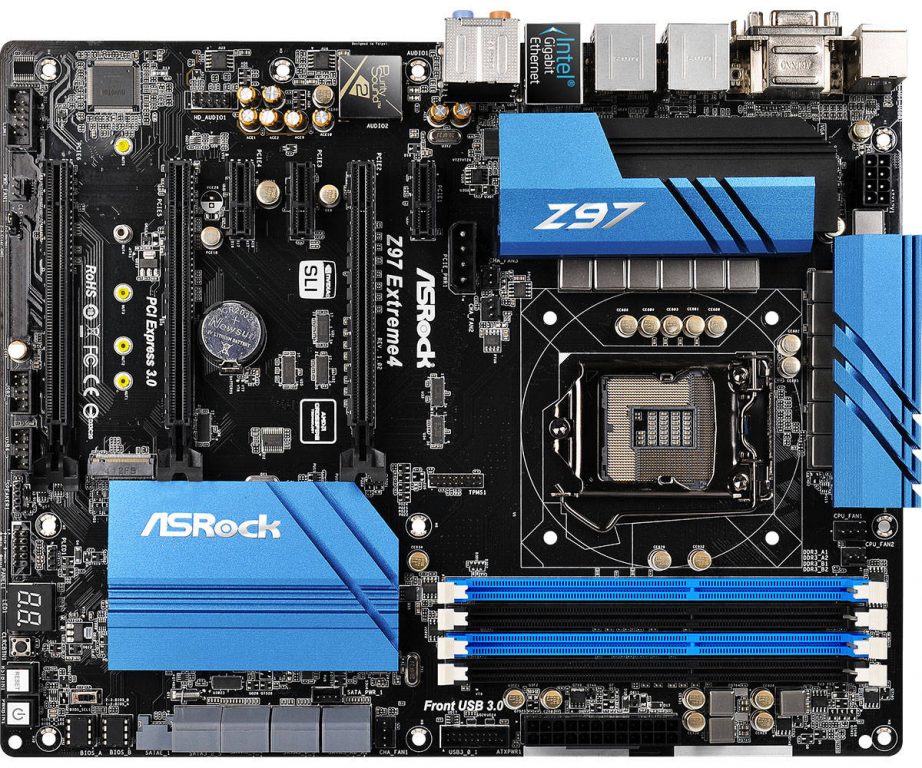

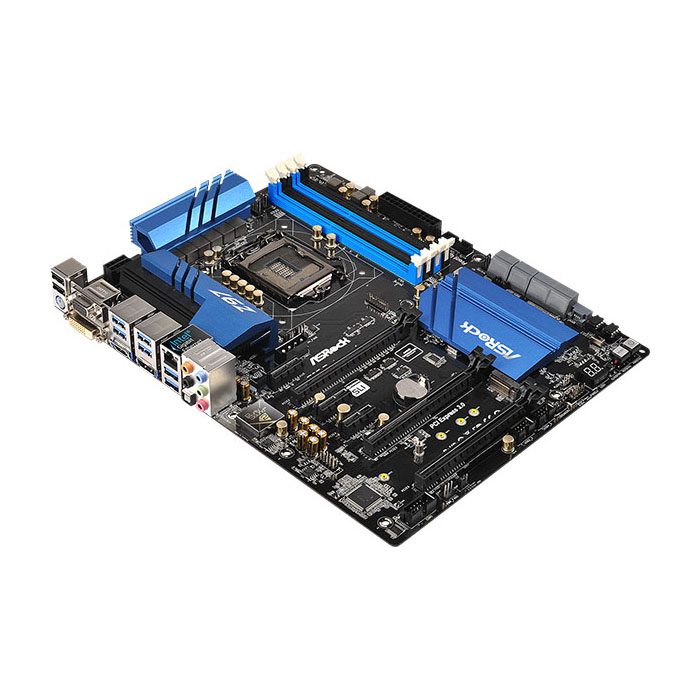

ASROCK Z97 EXTREME4 /1150
Manufacturer : ASROCK
Mnfr Part # : -
Model : Z97 EXTREME4
Socket : LGA1150
Graphics : - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600; - Pixel Shader 5.0, DirectX 11.1; - Max. shared memory 512MB*; - Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.2; - Supports Triple Monitor; - Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 24Hz or 4K x 2K (3840x2160) @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required); - Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports; - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports
CPU's supported : Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150); - Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150); - Digi Power design; - 12 Power Phase design; - Supports Intel® Turbo Boost 2.0 Technology; - Supports Intel® K-Series unlocked CPUs; - Supports ASRock BCLK Full-range Overclocking
Chipset : Intel® Z97
Expansion Slots : - 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE5/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE5); triple at x8 (PCIE2) / x4 (PCIE5) / x4 (PCIE6); - 3 x PCI Express 2.0 x1 Slots; - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™; - Supports NVIDIA® Quad SLI™ and SLI™; - 15μ Gold Contact in VGA PCIe Slot (PCIE2)
Storage : - 6 x SATA3 6.0 Gb/s Connectors by Intel® Z97, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology; - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology; - 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket)*; - 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)
Memory type : Dual Channel DDR3/DDR3L Memory Technology; - 4 x DDR3/DDR3L DIMM Slots; - Supports DDR3/DDR3L 3200+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory; - Max. capacity of system memory: 32GB*; - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2; - 15μ Gold Contact in DIMM Slots

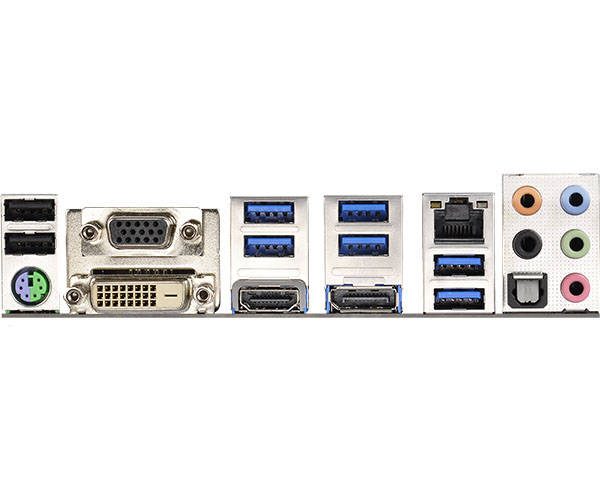

I/O : - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 1 x DisplayPort 1.2; - 1 x Optical SPDIF Out Port; - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)); - 2 x USB 3.0 Ports (ASMedia ASM1042AE) (Supports ESD Protection (ASRock Full Spike Protection)); - 4 x USB 3.0 Ports (Intel® Z97) (Supports ESD Protection (ASRock Full Spike Protection));- 1 x PS/2 Mouse/Keyboard Port;- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone.
Connectors : - 1 x COM Port Header; - 1 x TPM Header; - 1 x Power LED Header; - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin); - 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin); - 1 x Power Fan Connector (3-pin); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x HDD Saver Connector; - 1 x PCIe Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); - 1 x USB 3.0 Header (support 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); - 1 x Dr. Debug with LED; - 1 x Power Switch with LED; - 1 x Reset Switch with LED; - 1 x BIOS Selection Switch
Audio : - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection (ASRock Full Spike Protection); - Supports Purity Sound™ 2; - Nichicon Fine Gold Series Audio Caps; - 115dB SNR DAC with differential amplifier; - TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets); - Direct Drive Technology; - EMI shielding cover; - PCB isolate shielding; - Supports DTS Connect
LAN : - Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel® I218V; - Supports Intel® Remote Wake Technology; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection (ASRock Full Spike Protection); - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
BIOS : - 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS); - Supports Secure Backup UEFI Technology; - ACPI 1.1 Compliant wake up events; - SMBIOS 2.3.1 Support; - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
Form Factor : ATX Form Factor High Density Glass Fabric PCB
OS : - Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Other : -
Warranty : 36 months
Mnfr Part # : -
Model : Z97 EXTREME4
Socket : LGA1150
Graphics : - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600; - Pixel Shader 5.0, DirectX 11.1; - Max. shared memory 512MB*; - Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.2; - Supports Triple Monitor; - Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 24Hz or 4K x 2K (3840x2160) @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required); - Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports; - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports
CPU's supported : Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150); - Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150); - Digi Power design; - 12 Power Phase design; - Supports Intel® Turbo Boost 2.0 Technology; - Supports Intel® K-Series unlocked CPUs; - Supports ASRock BCLK Full-range Overclocking
Chipset : Intel® Z97
Expansion Slots : - 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE5/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE5); triple at x8 (PCIE2) / x4 (PCIE5) / x4 (PCIE6); - 3 x PCI Express 2.0 x1 Slots; - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™; - Supports NVIDIA® Quad SLI™ and SLI™; - 15μ Gold Contact in VGA PCIe Slot (PCIE2)
Storage : - 6 x SATA3 6.0 Gb/s Connectors by Intel® Z97, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology; - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology; - 1 x SATA Express 10 Gb/s Connector (shared with SATA3_4, SATA3_5 and M.2 Socket)*; - 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)
Memory type : Dual Channel DDR3/DDR3L Memory Technology; - 4 x DDR3/DDR3L DIMM Slots; - Supports DDR3/DDR3L 3200+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory; - Max. capacity of system memory: 32GB*; - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2; - 15μ Gold Contact in DIMM Slots
I/O : - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 1 x DisplayPort 1.2; - 1 x Optical SPDIF Out Port; - 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)); - 2 x USB 3.0 Ports (ASMedia ASM1042AE) (Supports ESD Protection (ASRock Full Spike Protection)); - 4 x USB 3.0 Ports (Intel® Z97) (Supports ESD Protection (ASRock Full Spike Protection));- 1 x PS/2 Mouse/Keyboard Port;- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone.
Connectors : - 1 x COM Port Header; - 1 x TPM Header; - 1 x Power LED Header; - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin); - 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin); - 1 x Power Fan Connector (3-pin); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x HDD Saver Connector; - 1 x PCIe Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); - 1 x USB 3.0 Header (support 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)); - 1 x Dr. Debug with LED; - 1 x Power Switch with LED; - 1 x Reset Switch with LED; - 1 x BIOS Selection Switch
Audio : - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection (ASRock Full Spike Protection); - Supports Purity Sound™ 2; - Nichicon Fine Gold Series Audio Caps; - 115dB SNR DAC with differential amplifier; - TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets); - Direct Drive Technology; - EMI shielding cover; - PCB isolate shielding; - Supports DTS Connect
LAN : - Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel® I218V; - Supports Intel® Remote Wake Technology; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection (ASRock Full Spike Protection); - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
BIOS : - 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS); - Supports Secure Backup UEFI Technology; - ACPI 1.1 Compliant wake up events; - SMBIOS 2.3.1 Support; - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
Form Factor : ATX Form Factor High Density Glass Fabric PCB
OS : - Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Other : -
Warranty : 36 months
